SC series of window reactorInstrument Description:
Window reactors (sapphire window reactor, quartz window reactor) for high-pressure reaction in the need for visual observation of the reaction and the need for photochemical catalytic reaction. This is a non-standard products need to be customized according to customer requirements. Can be equipped with pressure gauges, intake valve, release valve, bottom tube, thermocouple and process inlet and so on.
Wuzhou Dingchuang SC series window reaction kettle sapphire reactor Features:
1, the new fastening structure:
In the past, all bolts of the reaction kettle were completely unscrewed during the preparation of the sapphire reactor. After the reaction materials were added, they were re-screwed and tightened again. Single screw open the kettle and seal the process need to turn a dozen laps, each reactor has multiple bolts, the test process time-consuming and laborious.

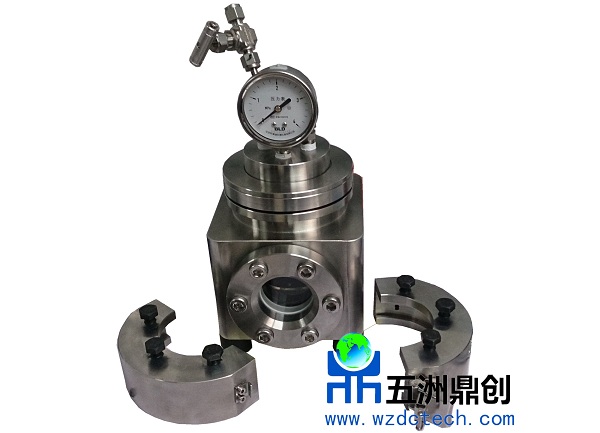

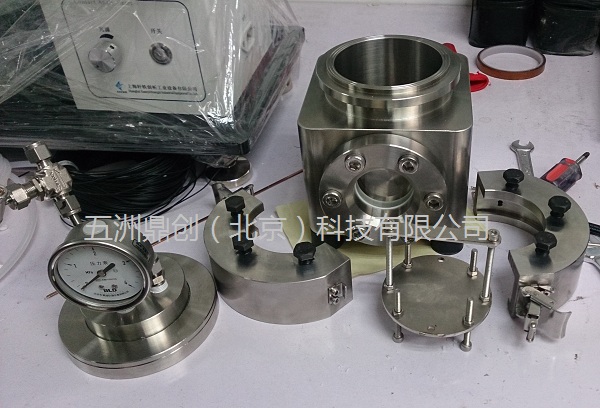

Our window reactors Sapphire reactor high pressure reactor with a half-ring fast-opening fastening structure. Compared with the traditional institutions, each test needs to open the kettle, just loosen the screw around a circle can be easily removed from the side of the ring, quickly open the reactor.
The tightening process is also simple and effortless. And each holding ring bolt pressure on the role of the lower ring, ring ring and then pressed the kettle head, so that the power of bolts can be evenly distributed to the kettle head. The traditional flange structure to ensure uniform force on the fastening force and the diagonal tightening sequence has strict requirements on the operation of the operator's skill requirements are relatively high, a little careless will lead to leakage of the reactor and re-tight seal .
2, small space double-line seal structure:
Polytetrafluoroethylene (PTFE) as an excellent corrosion-resistant materials are widely used in the sealing part of the instrument, but itself in 250 degrees will produce cold flow deformation.
In order to overcome this contradiction, our company uses precision processing of small space double-line sealing technology, the cauldron and kettle sealing gap control in a very small range, PTFE deformation at high temperatures, but the joint gap is too small PTFE can not deform cold To the outside of the sealing groove, only in the tank internal deformation expansion, so that the reactor to further enhance the sealing, and in the cauldron and kettle body sealing surface processing V-type sealing groove, increasing the sealing area. The final realization of the sealing surface in the specified temperature, the higher the temperature the better sealing performance.
3, no dead space Bottom tube:
Laboratory-level reaction samples are generally small and expensive. So the experimental equipment (Windows reactor, sapphire reactor) on the accuracy of the experimental results and funding impact is obvious. Such as the addition of liquid materials, the wall is a relatively prominent problem. Our DC series of non-stirred reactor tube through the bottom tube into the reactor, there is no intermediate adapter leading to the dead space. If the inlet into a ball valve, you can in the middle of the reaction through the syringe directly into the kettle into the material. Suitable for the addition of trace reactants.
4, strict selection:
Material durability and safety of the reactor is essential, our company uphold the concept of safe and durable, all of the main reactor window sapphire reactor are made of high quality stainless steel. Which standard valve fittings are imported brands, increase the use of reliability.
5, security:
Windows reactors Sapphire reactor can be equipped with pressure relief valve, you can set the maximum use of pressure. Ensure the safe use of the reactor.
6, the flexibility of matching and customization: (see the relevant color page) all the window reactors Sapphire reactor can be customized to accept the customer's personalized. Window autoclave sapphire autoclave quartz window autoclave reactor is also known as the laboratory reactor, micro-reactor, small-scale reactor.
